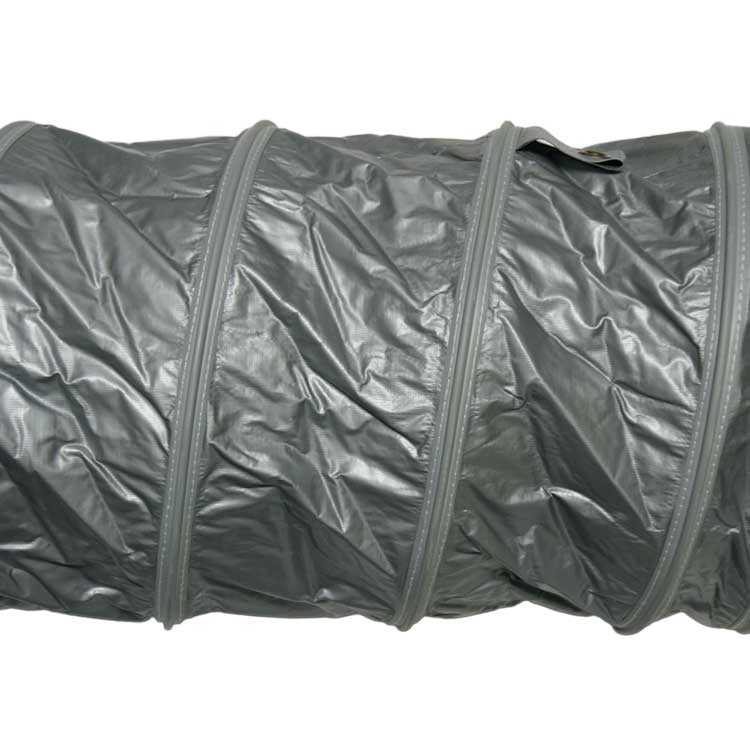

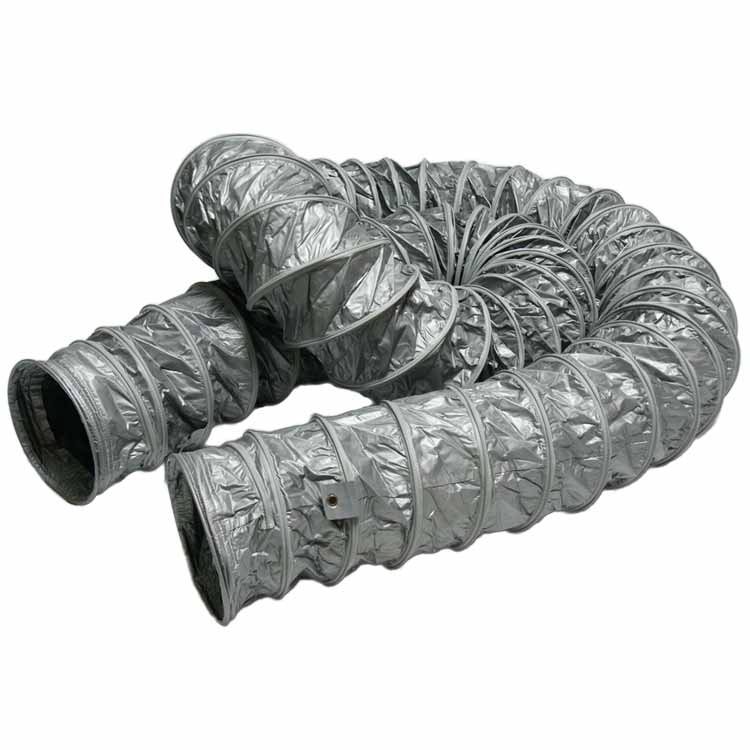

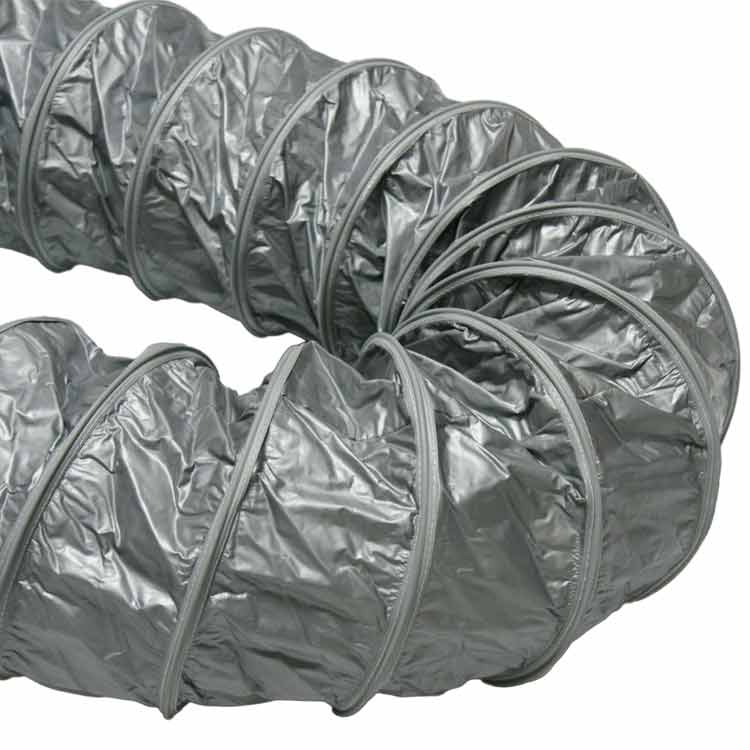

The “Air Ventilator Insulated” ventilation ducts are made from two single-ply PVC fabric layers, plus one layer of PET film with a cotton barrier meant for insulation. The insulated barrier in this flexible ventilation ducting hose makes it ideal of air movement applications. It is compressible and can be easily moved around, thus making it good for either permanent or temporary air conditioning uses. Primarily meant for residential or commercial level of air ducting and ventilation, it has a shiny metallic silver appearance that allows it to bring a sleek and professional look to the job.
The PVC fabric layers that make these vent hoses are very crucial to what makes them great ducting products. The PVC material provides these ventilation ducts with a superior level of resistance against moisture, ozone, and UV rays. As a result, they can be used in both indoor and outdoor applications. PVC material itself is resistant to various types of oils and alcohols, but it is best to not put this air hose in contact with more caustic chemical materials.
This insulated flexible ventilation ducting is made to operate in both high and low ambient temperatures. These vent hoses can function well in temperatures ranging between -20° F and 180° Fahrenheit. A superior level of functionality in various temperatures is a key factor in any good air ducting and ventilation hoses. Whether your application sees a lot of very cold air or very hot air, or even both, these insulated ventilation ducts will be up to handling the task.

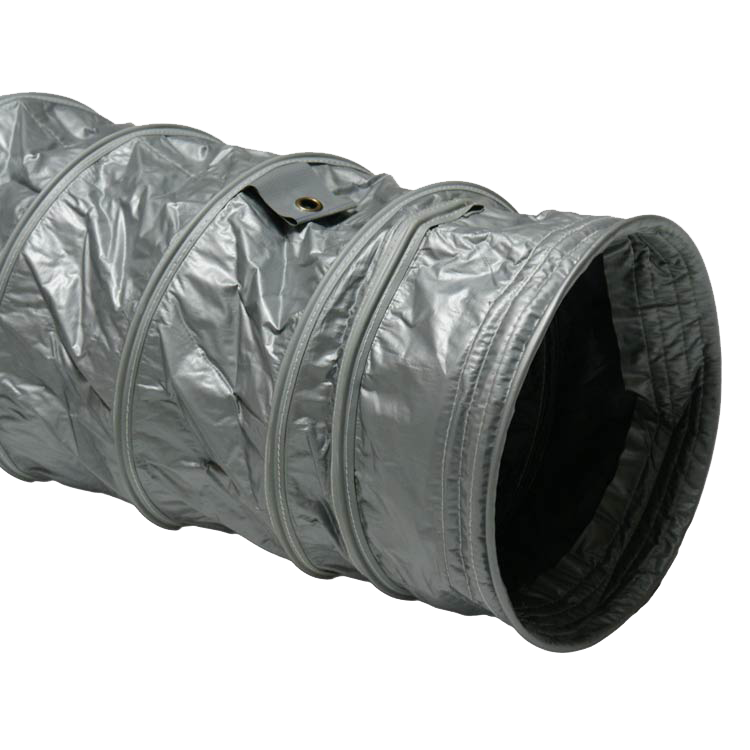

The “Air Ventilator Insulated” hoses come in various inside diameter (ID) sizes. The ID sizes for this hose are measured in inches. We offer these hose products in the sizes of 8”, 12”, 14”, and 16” ID. Custom sizes of up to 24” ID are available upon request. A standard hose is 25 feet in length, in addition these hoses can be ordered in custom lengths upon request. The ends of these vent hoses are plain cut, allowing for an easy installation process.
These insulated ducting and ventilation hoses should be used in residential and commercial applications. Use this ventilation ducts for AC ventilation, cold air supply, utility blowers, HVAC purposes, general-purpose residential ducting, and humidity control applications.
Volume Pricing
| Pricing per Foot | 25 – 99 feet | 100 – 249 feet | 250 – 499 feet | 500+ feet | |
| 8″ ID | $24.28 | $21.12 | $20.03 | $18.21 | |
| 12″ ID | $32.28 | $28.08 | $26.63 | $24.21 | |
| 14″ ID | $37.16 | $32.33 | $30.66 | $27.87 | |
| 16″ ID | $41.13 | $35.78 | $33.93 | $30.84 |
See “Air Ventilator Insulated Ventilation Ducts” in Action
Air Ventilator Insulated Ventilation Ducts
PVC Flexduct Light-Duty Clear
Expert's Review
Our Expert’s Opinion
Robert, an experienced team member, has this to say
Pros
Cost-Effective: Insulated option for temporary jobs
Stocked Insulated Duct: Quick delivery
Insulated: Keeps cool air cool and warm air warm inside the hose
Belted Cuffed Ends: No additional clamps necessary
External Wear-Strip: Prevents damage when transporting
Compressible Hose: Easy to transport
Cons
No to Negative Pressure: Not recommended for negative pressure applications
Limited Sizes: Few Sizes Available – 8″, 12″, 14″ & 16″ IDs
Length: Only available in 25 foot lengths
Hose Ends: Only available with belted cuffed ends
